Unlock Caribbean opportunities with the CAMDI and Barbados data

28 February 2022

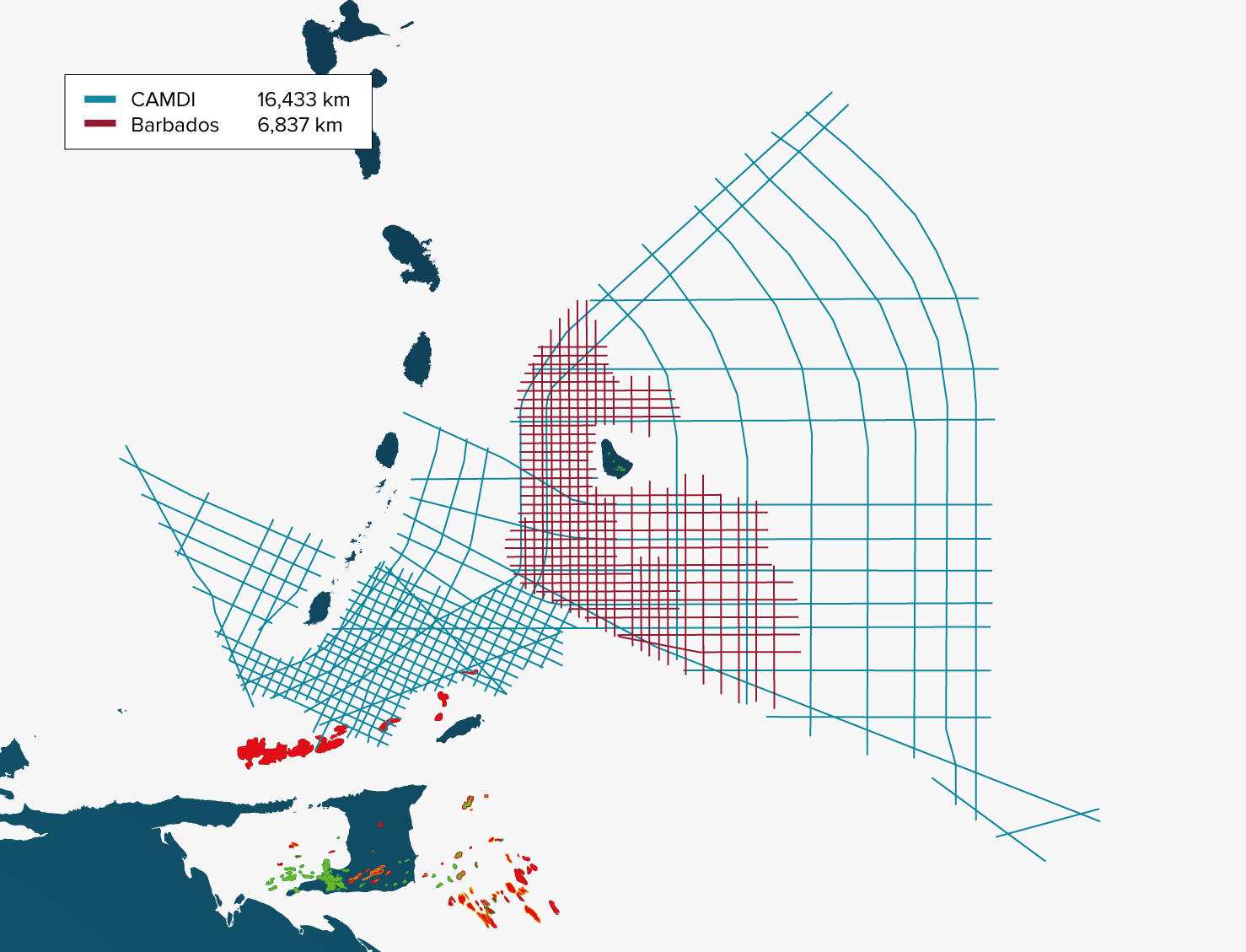

CAMDI and Barbados Map 2022

The CAMDI and Barbados surveys target the highly prospective Southeastern Caribbean Region, tying several producing areas, and deep-water wells (including Sandy Lane). CAMDI is the most modern dataset in the region, best suited for the current 2022 Trinidad and Tobago and upcoming Barbados licensing rounds.

Competitive rates are available on the high-quality pre-stack time, pre-stack depth, gravity and magnetic datasets.

Please contact us today to find out more:

Robert Sorley
+1 (281) 744 0854

About CAMDI and Barbados Products

The Caribbean Atlantic Margin Deep Imaging and Barbados surveys are designed to assist oil companies to better understand the regional tectonic framework of the various basins along the Southeastern Caribbean and Western Atlantic margin of Northeast South America. The CAMDI survey includes a Detailed Grid off Trinidad and Tobago and Grenada, and when integrated with the Barbados survey they provide more detail, tying the producing areas to the underexplored deeper part of the Tobago Trough and Barbados.

The Tobago Trough is an underexplored area flanked by oil and gas production to the East and South in Barbados and Trinidad and Tobago. Its prospectivity was recently underpinned by a new gas discovery offshore Grenada. Seismic interpretation of these surveys shows a thick sedimentary succession in the Tobago Trough. The presence of a mature La Luna oil-prone source rock in the Trough seems likely.

The Caribbean Atlantic Margin Deep Imaging and Barbados survey tie the Sandy Lane well in Barbados. In addition, CAMDI ties to several deeper wells in Trinidad and Tobago.


CAMDI seismic line

CAMDI seismic line

CAMDI Survey Acquisition Parameters

The Caribbean Atlantic Margin Deep Imaging survey was acquired using a 37.5-meter shotpoint interval and Continuous recording 18-second record length. The survey covers Barbados, Trinidad and Tobago, Grenada and St. Vincent, and includes a Detailed Grid covering Trinidad and Tobago and Grenada.



Acquisition system

Sercel Seal System

Shotpoint interval

37.5 m

Sample rate

2 ms

Cable type

Sentinel Solid Streamer

Number of receivers


Receiver interval

12.5 m

Cable length

12 km

Cable depth

12 m (+/-1 m)



Recording time

18 s (Continuous Recording)

Recording mode

Continuous Recording

Receiver type

Solid: Sercel Flexible Hydrophone

Source type


Source volume

5,020 in2

Number of sources



2,000 psi

Source depth

7.5 (+/- 1 m)


3 HZ analogic-Filter antialias linear

Data format

8058 IEE

X min

150 m

X max

12,200 m






Barbados Seismic Line

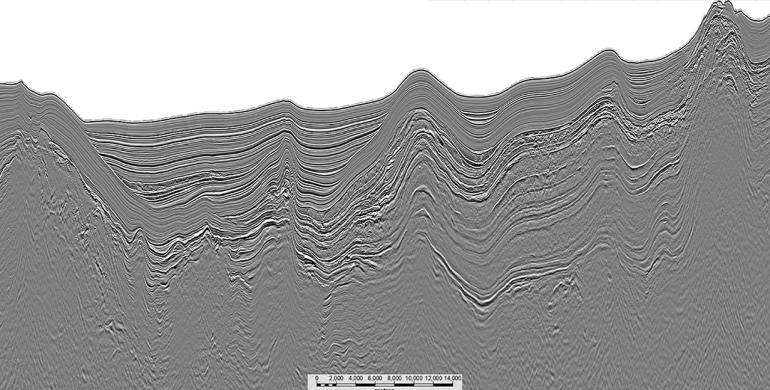

Barbados Line Example

Barbados Survey Acquisition Parameters

The Barbados survey was acquired in 2012/2013 and reprocessed in 2015. The survey was acquired using a 37.5-meter shotpoint interval and Continuous recording 13.5-second record length, over a 14 x 14 km and 7 x 7 km prospect grid. The survey covers the Barbados Trough, the Tobago Basin and crosses the Barbados Ridge.



Acquisition mode

2D Single streamer / Single source

Recording system

Sercel SEAL 24-bit Digital / ION DigiStreamer

Shot interval


Source volume

5300 cubic inch

Source pressure

2000 psi

Source depth

7 m

Streamer length

10050 / 10000 m active length

Group length

12.5 m

Streamer depth

8 m (nominal)

Nominal fold coverage


Near trace offset (COS-CNG)

150 / 135 m (nominal)

Record length

13.5 sec

Record format

SEG-D 3590 IEEE / SEG-D 3592 IEEE, Rev 2.1

Sampling rate

2 ms

Low cut filter (analog, system inherent)

3 Hz @ 6 db/oct

Low cut filter (digital)


Combined LC filter (analog + digital)

3 Hz

High cut filter

200Hz @ 370 db/oct / 214Hz @ 574 db/oct

Shooting direction
